Fire-Rated Dampers

Fire-rated dampers, curtain type, by PCJ, are constructed of galvanized steel sheets, high strength structure, frame shape is modular design to be suitable for mounting in duct line or connecting together with other fire-rated dampers as multiple section. The dampers have been tested and certified for 3-hour fire rating as per ANSI/UL 555 & CAN/ULC-S112. Single Section, Multiple Section, In Airstream, Out of Airstream are available upon request to fulfill most requirements. Size can be made to order up to maximum :

  • 1220 mm. x 1220 mm. (48” x 48”) for Single Section
  • 2440 mm. x 2440 mm. (96” x 96”) for Multiple Section

We recommend application of our fire-rated dampers for blocking spread of fire passing through duct line, ventilation fan, air louver as well as indoor glass panel, especially large size of glass panel when fire or heat approaches the dampers.

fire damper UL certificate

Product Gallery

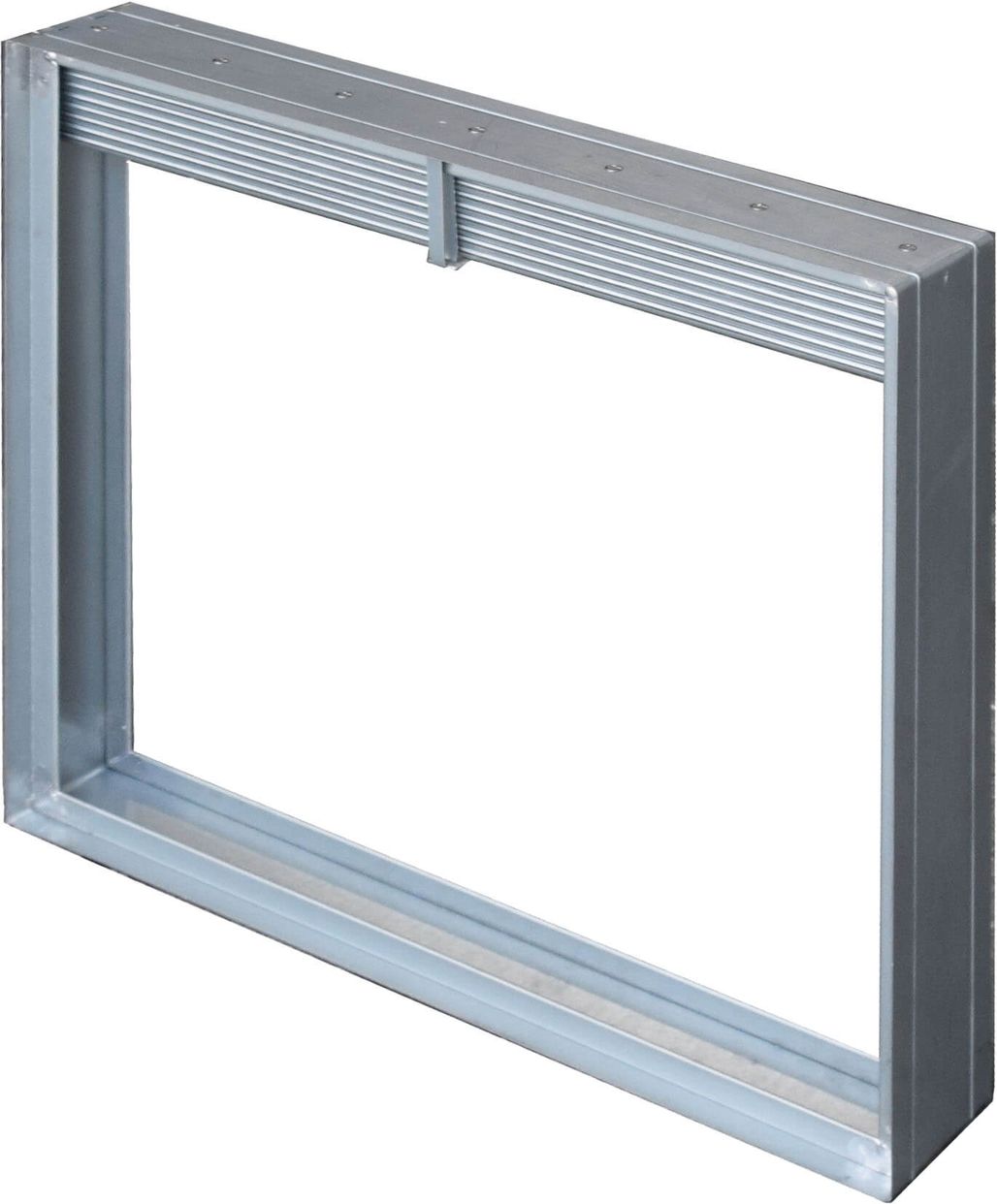

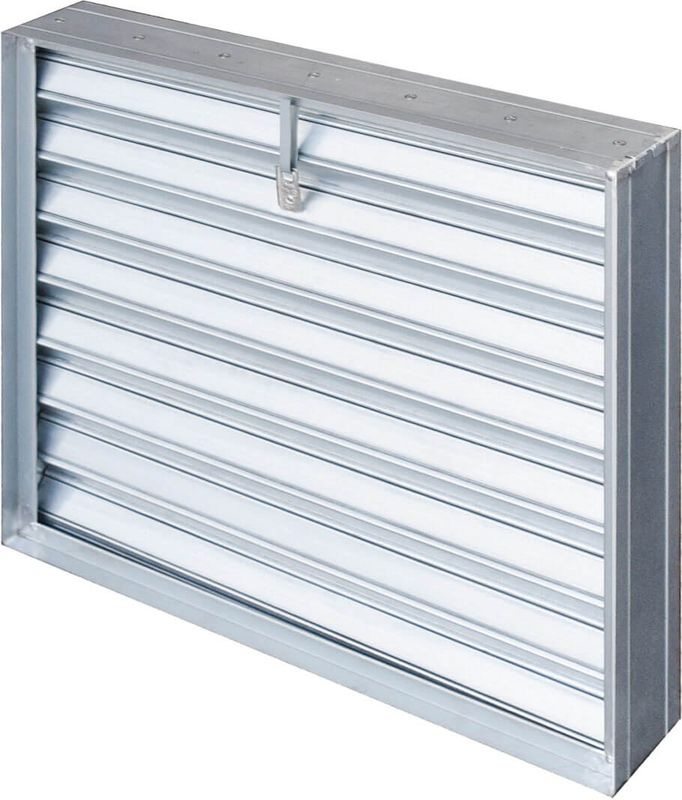

fire damper in airstream fire damper in airstream
In Airstream, Single Section without Damper Sleeve

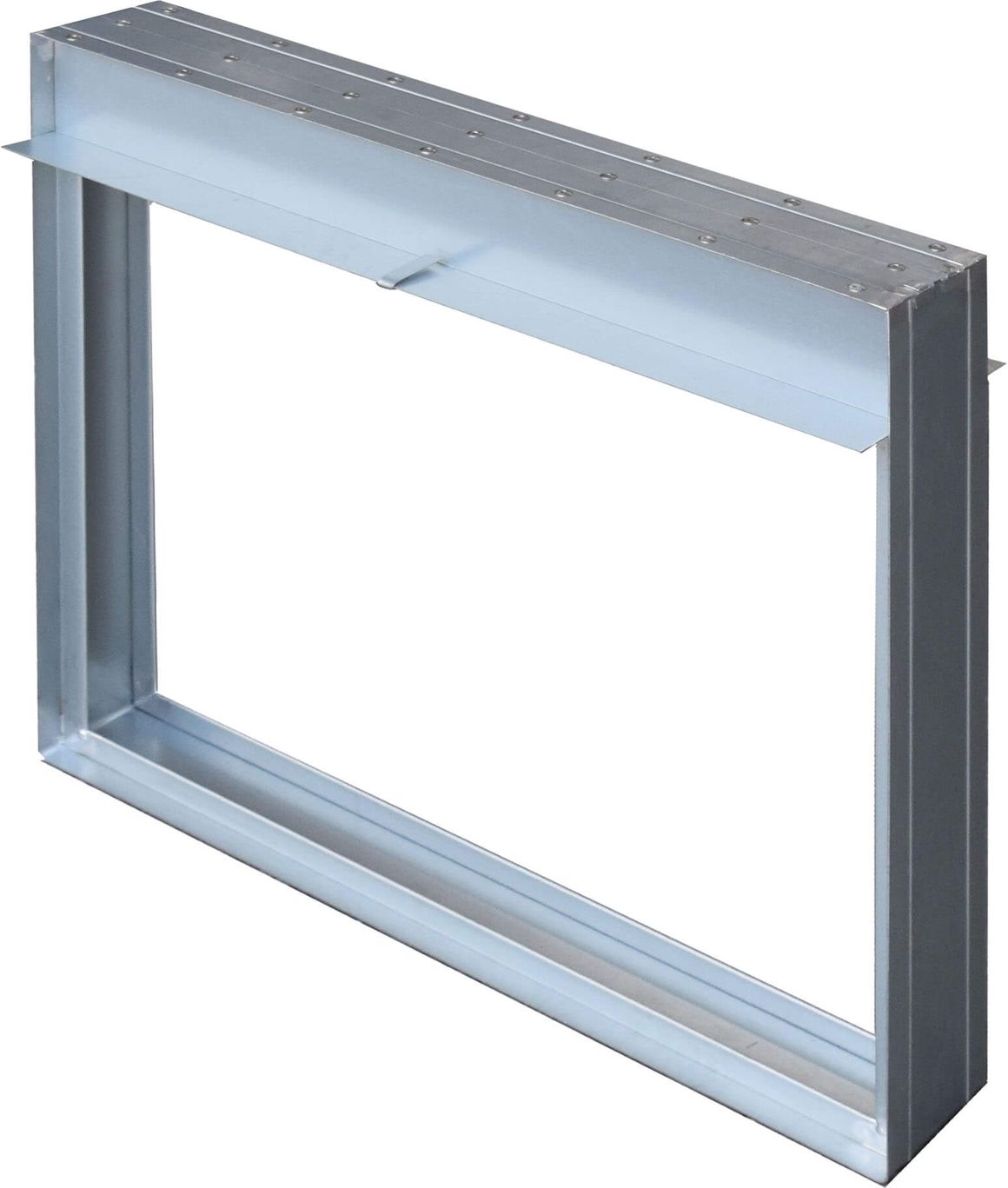

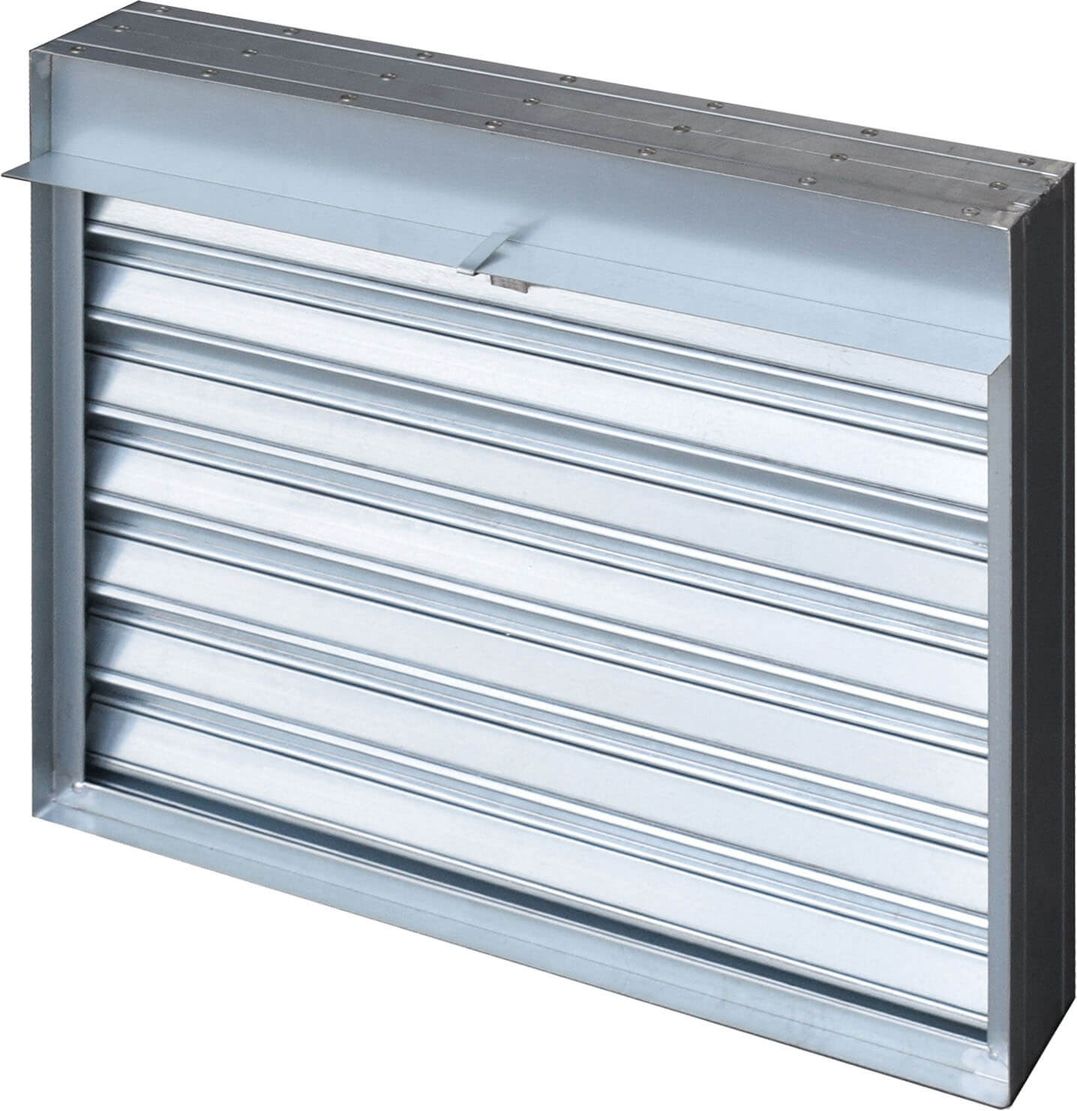

fire damper out if airstream fire damper out of airstream
Out of Airstream, Single Section without Damper Sleeve

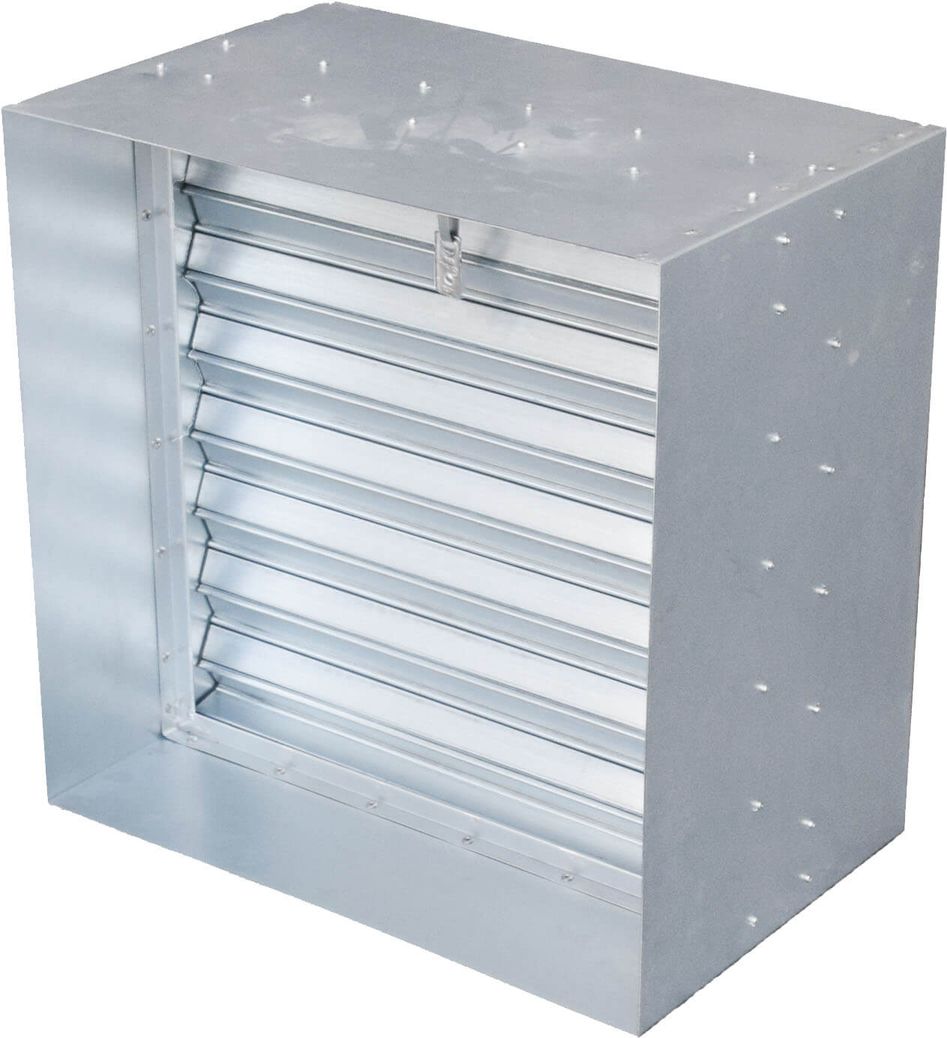

fire damper in airstream with damper sleeve
In Airstream, Single Section with Damper Sleeve

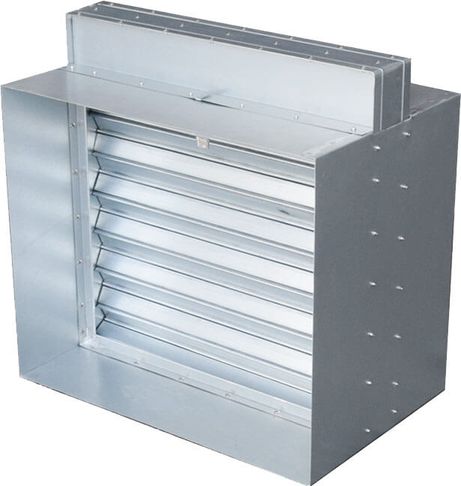

fire damper out of airstream with damper sleeve
Out of Airstream, Single Section with Damper Sleeve

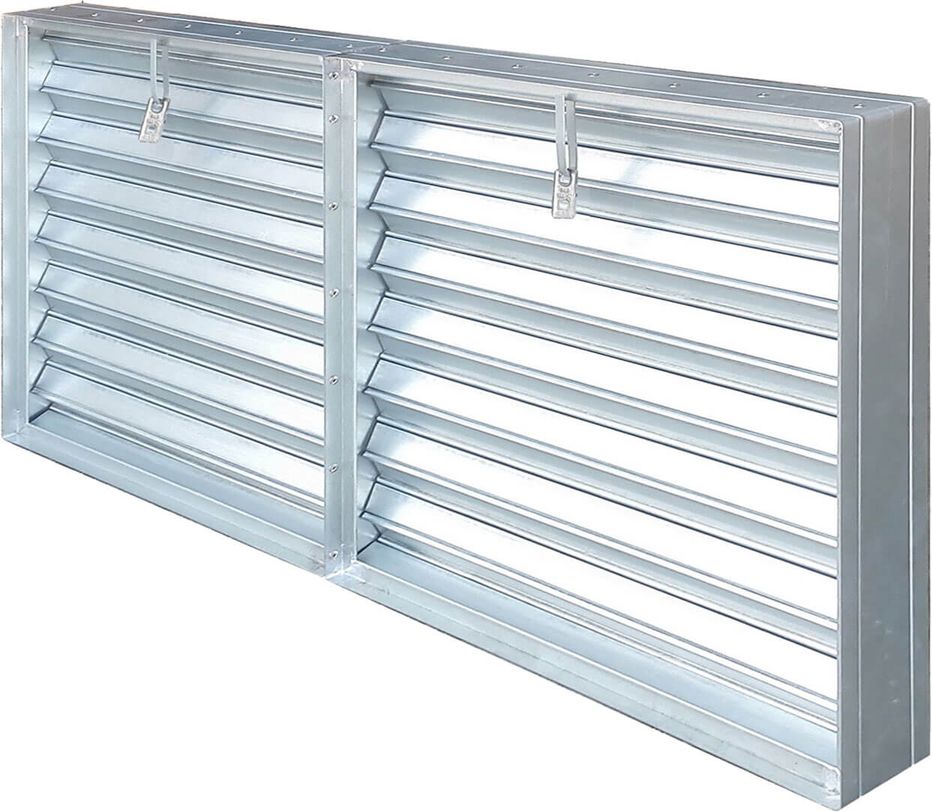

fire damper in airstream multiple section
In Airstream, Multiple Section (2 Single Units Connected together)

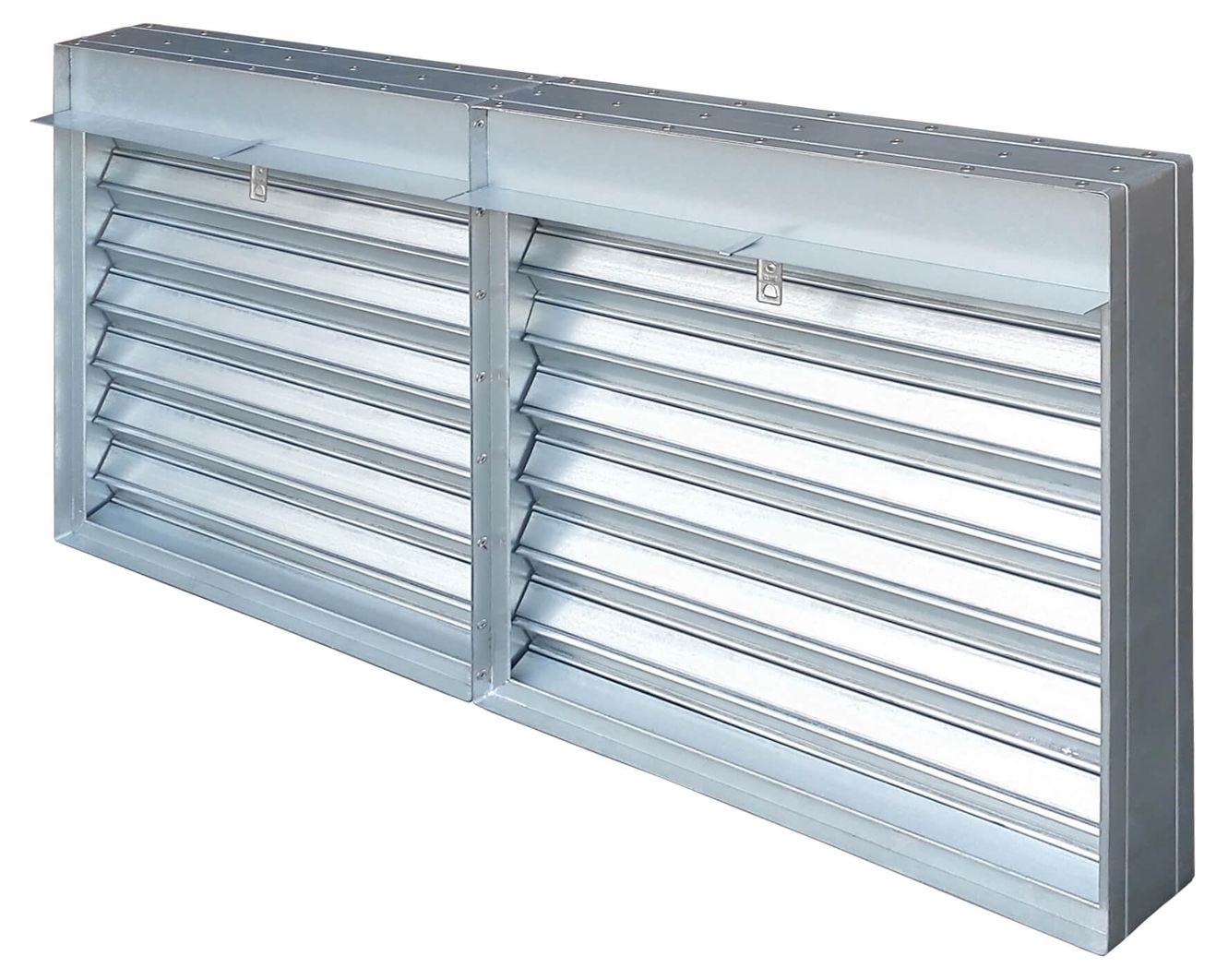

fire damper out of airstream multiple section
Out of Airstream, Multiple Section (2 Single Units Connected together)

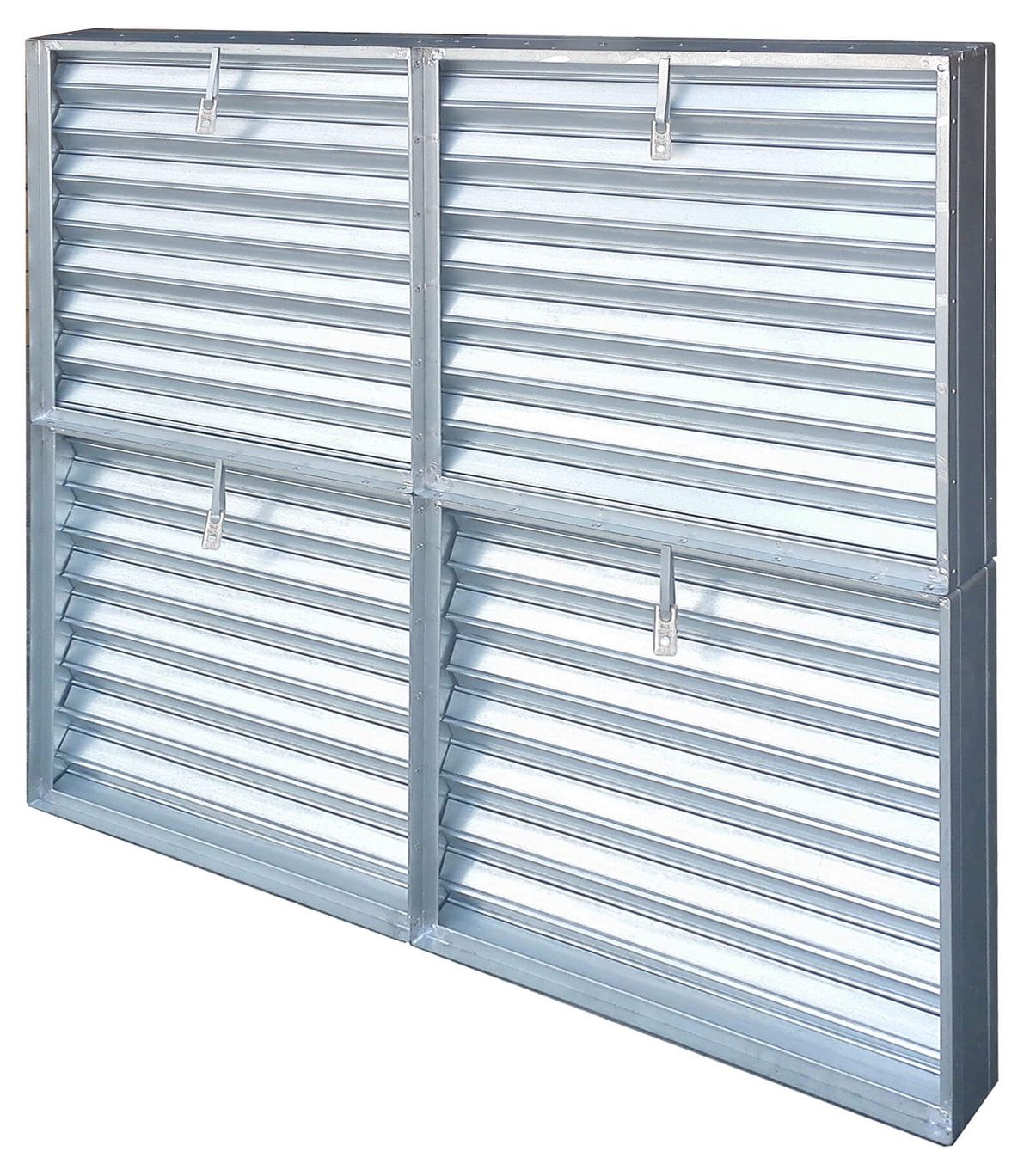

fire damper in airstream multiple 4 pieces
Multiple Section (4 Single Units Connected together)


Catalogue


Certificate


Installation


Video Gallery

VDO demonstrates function of Fire-Rated Dampers, Model : FDC
Fire-Rated Damper of PCJ INDUSTRIES CO., LTD. tested for 3-hour fire rating in accordance with ANSI/UL 555 & CAN/ULC-S112 at UL LLC Northbrook, USA
